Soft sealed gate valve

Soft sealed gate valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

Soft-sealed gate valve is also called elastic seated gate valve. It adopts non-cavity structure. Epoxy resin is sprayed on the inner and outer surfaces of valve body cover and rubber is coated on the surface of gate plate. This fundamentally prevents the possibility of corrosion. The "O" sealing ring is used instead of filler in valve stem seal to make bees more reliable. According to the requirement, the gate valve can be operated by operating lever, handwheel, electric and pneumatic.


Structural characteristics


1. Integral cover concealed rod design, compact structure; stem nut and gate two-body structure, no stuck phenomenon; straight passage, no leakage cavity; stem seal using "O" ring.


2. Excellent anticorrosion performance. Epoxy resin is sprayed on the inner and outer surfaces of the shell, enameled on the inner surface when needed; hexagonal bolts are used for connecting bolts, and the top seals are sealed.


3. Reliable hygienic epoxy resin meets the hygienic standard GB/T17219-1998, the gate is covered with hygienic inspection rubber; Stem, stem nut and other parts are made of stainless steel or bronze which is not corroded by water.


It is suitable for drinking water, water supply and drainage, sewage treatment, natural gas and gas, industry and food industry.


Main performance parameters of soft seal gate valves

Model
PN
MPa
Applicable medium
Z41X-10
10
1
≤80
Z41X-16Q
16
1.6
≤80


Material for main parts of soft sealing gate valves


Model
Material Science
Body and bonnet
Stem
Lining plate
filler
Z41X-10
Gray cast iron
Chromium nickel stainless steel
Ductile iron (Ding Qing rubber)
Ding Qing rubber
Z41X-16Q
Spheroidal graphite cast iron
Chromium nickel stainless steel
Ductile iron (Ding Qing rubber)
Ding Qing rubber

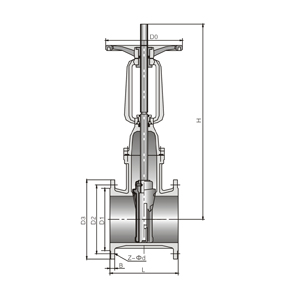

Main dimensions of soft sealed gate valves


Z41X-10 type bright pole soft seal gate valve


DN
L
D
D0
D1
b
f
z×Φd
50
178
165
125
99
20
3
4×Φ19
65
190
185
145
118
20
3
4×Φ19
80
203
200
160
132
22
3
8×Φ19
100
229
220
160
132
22
3
8×Φ19
125
254
250
210
184
26
3
8×Φ19
150
267
285
240
211
26
3
8×Φ23
200
229
340
295
266
26
3
8×Φ23
250
330
395
350
319
28
4
12×Φ23
300
356
445
400
370
28
4
12×Φ23
350
381
505
460
429
30
4
16×Φ23
400
406
565
515
480
32
4
16×Φ28
450
432
615
565
530
32
4
20×Φ28
500
457
670
620
582
34
4
20×Φ28
600
508
780
725
682
36
5
20×Φ31


Z41X-16Q type bright pole soft seal gate valve


DN
L
D
D0
D1
b
f
z×Φd
50
178
165
125
99
19
3
4×Φ19
65
190
185
145
118
19
3
4×Φ19
80
203
200
160
132
19
3
8×Φ19
100
229
220
180
156
19
3
8×Φ19
125
254
250
210
184
19
3
8×Φ19
150
267
285
240
211
19
3
8×Φ23
200
229
340
295
266
20
3
12×Φ23
250
330
405
355
319
22
3
12×Φ28
300
356
460
410
370
24.5
4
12×Φ28
350
381
520
470
429
26.5
4
16×Φ28
400
406
580
525
480
28
4
16×Φ31
450
432
640
585
548
30
4
20×Φ31
500
457
715
650
609
31.5
4
20×Φ34
600
508
840
770
720
36
5
20×Φ37


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.Soft sealed gate valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
