G641J reciprocating pneumatic diaphragm valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
G641J reciprocating pneumatic diaphragm valve is specially designed to control non-corrosive or general corrosive media. There is no lining on the inner surface of the valve body or covered with a variety of optional rubber. The reciprocating pneumatic diaphragm valve is suitable for different working temperatures and fluid pipelines. Applicable Temperature of Reciprocating Pneumatic Diaphragm Valve:<85, <100, <120, <150 (according to lining and diaphragm material)
Pressure level: PN0.6, 1, 1.6
Material Science
Body: cast iron, ductile iron, carbon steel, stainless steel.
Bonnet: cast iron, ductile iron, carbon steel, stainless steel.
Lining: no lining, rubber.
Diaphragm: Rubber
Disc: cast iron and carbon steel.
Cylinder: ductile iron
Piston: carbon steel
Stem: carbon steel
Hand wheel: Cast Iron
test
Lining layer: EDM test
Test and inspection according to GB/T13297 standard
Nominal pressure: PN (Mpa)
Valve body: PN * 1.5
Sealing: PN x 1.1

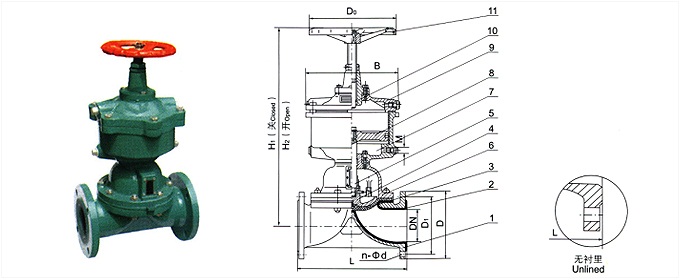

Parts List: 1, Body 2, Body Lining 3, Diaphragm 4, Disc 5, Lower Stem 6, Cover 7, Cylinder 8, Piston 9, Cylinder Head 10, Upper Stem 11, Handwheel
DN mm | 公稱壓力 MPa | 工作壓力 MPa | L （mm） | D （mm） | D1 （mm） | n-φd （mm） | F （mm） | H1 （mm） | H2 （mm） | D0 （mm） | B | 氣源壓力 MPa | 氣源接頭 in | 耗氣量 cm3 | 重量 |
15 | 0.6 | 0.6 | 125 | 95 | 65 | 4-14 | 2 | ||||||||
20 | 139 | 105 | 75 | 4-14 | 2 | ||||||||||
25 | 145 | 115 | 85 | 4-14 | 2 | 250 | 264 | 120 | 94 | 0.4 | 10×1 | 2.395×102 | 6．5 | ||
32 | 160 | 140 | 100 | 4-18 | 2 | 3025 | 328 | 140 | 120 | 0.4 | 12×1.25 | 6.082×102 | |||
40 | 180 | 150 | 110 | 4-18 | 3 | 306 | 328 | 140 | 120 | 0.4 | 12×1.25 | 6.082×102 | |||
50 | 210 | 165 | 125 | 4-18 | 3 | 379 | 405 | 160 | 185 | 0.4 | 12×1.25 | 1.235×102 | 25 | ||
65 | 250 | 185 | 145 | 4-18 | 3 | 467 | 502 | 240 | 245 | 0.5 | 16×1.5 | 3.725×103 | 31．5 | ||
80 | 300 | 200 | 160 | 4-18 | 3 | 483 | 523 | 240 | 245 | 0.5 | 16×1.5 | 3.725×103 | 62．5 | ||
100 | 350 | 220 | 180 | 8-18 | 3 | 565 | 617 | 280 | 330 | 0.5 | 20×1.5 | 9.458×103 | 93．5 | ||
125 | 400 | 250 | 210 | 8-18 | 3 | 664 | 732 | 320 | 380 | 0.5 | 20×1.5 | 1.409×104 | 114 | ||
150 | 460 | 285 | 240 | 8-22 | 3 | 750 | 830 | 320 | 470 | 0.5 | 20×1.5 | 2.868×104 | 164 | ||
200 | 0.4 | 570 | 340 | 295 | 8-22 | 4 | 930 | 1050 | 400 | 470 | 0.5 | 20×1.5 | 4.619×104 | 249 | |
250 | 680 | 395 | 350 | 12-22 | 4 |
