ZDLQ (X) electronic electric three way regulating valve

ZDLQ (X) electronic electric three way regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZDLQ electronic three-way confluence control valve / ZDLX electronic three-way shunt control valve consists of 3810L (or PSL series) straight-stroke electronic electric actuator and three-way valve. The three-way valve spool structure adopts a cylinder thin wall window and adopts the side direction of the spool. It is applied to proportional regulation or bypass regulation, especially to the regulation of fluid temperature control system of heat exchanger in petroleum industry.


Characteristics of electronic electric three way regulating valve


The electric actuator of the electronic three-way regulating valve is an electronic integrated structure with the function of feeding clothes. It receives a unified standard signal of 4-20mA or 1-5V.DC, converts the current signal into the corresponding linear displacement, automatically controls the opening of the regulating valve, and achieves the pressure, flow, temperature and level of the fluid in the pipeline. Continuous adjustment of technical parameters.


The electronic electric three way regulating valve has the advantages of high adjustment precision, stable and reliable movement and so on. The confluence type is mainly used to mix two fluids into a third type of fluid; the diversion type is mainly used to separate one fluid into two fluids. This product can replace two single and double seat regulating valves which are on and off each other. It is used for regulating and controlling liquid, gas, steam and other media. One three-way valve can replace two single-seat valves or two-seat valves, occupying small space, saving installation pipes and costs.


Technical parameters of electronic electric three way regulating valve


公稱通徑mm
合流
25
32
40
50
65
80
100
125
150
200
250
300
分流
25
32
40
50
65
80
100
125
150
200
250
300
閥座通徑mm
26
32
40
50
65
80
100
125
150
200
250
300
額定流量系數kv
合流
8.5
13
21
34
53
85
135
210
340
535
800
1260
分流
8.5
13
21
34
53
85
135
210
340
535
800
1260
公稱壓力(MPa)
0.6,1.6, 2.5, 4.0, 6.4
行程(mm)
16
25
40
60
100
流量特性
直線
工作溫度℃
-40~230℃(常溫型),散熱片式230~450℃(中溫型),特殊訂貨-100~600℃
法蘭尺寸
符合JB78-59、JB79-59標準,可按JB/79.1-94、JB、ANSI、JIS、DIN 等標準訂貨生產
閥體材質
WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M
閥芯材質
1Cr18Ni9,SS304,0Cr18Ni12Mo2Ti,SS316,ZG1Cr18Ni9Ti
閥體型式
三通雙座鑄造球型閥
上閥蓋型式
普通式(常溫),散熱片式(中溫),長頸式(低溫)
配用電動執
行機構型號
PSL
PSL-202
PSL-204
PSL-208
PSL-312
PSL325
361L
361LSA-20
361LSB-30
361LSB-50
361LSC-65
361LSC-99
防爆型
361LXA-20
361LXB-30
361LXB-50


Note: 1. It can provide users with ANSI, JPI, JPI and other local flange standard products, flange spacing according to user needs to determine.


2. working temperature, nominal pressure, nominal diameter beyond the list of products can be resolved with our company.


Technical parameters of electronic electric three way regulating valve actuator


型號
額定輸出力N
速度mm/s
技術參數
PSL
361L
PSL
361L
PSL
361L
PSL
361L
201
361LSA-08
361LXA-08
1000
800
800
0.25
4.2
4.2
電源:AC220V 50Hz
輸入信號:DC4-20mA
DC1-5V
(信號線用屏蔽線)
輸出信號:DC4~20mA
防護等級:IP67
帶手輪
電源:AC220V 50Hz
輸入信號:DC4-20mA
DC1-5V
(信號線用屏蔽線)
輸出信號:DC4~20mA
防護等級:相當IP55
隔爆標志:ExdⅡBT4
帶手柄
202
361LSA-20
361LXA-20
2000
2000
2000
0.50
2.1
2.1
204
361LSB-30
361LXB-30
4500
3000
3000
0.50
3.5
3.5
208
361LSB-50
361LXB-50
8000
5000
5000
1.00
1.7
1.7
312
361LSC-65
12000
6500
0.60
2.8
325
361LSC-99
25000
10000
1.0
2.0


Performance index of electronic electric three way regulating valve


項目
指標值
基本誤差%
±2.5
回差%
2.5
死區%
1.0
始終點偏差%
電開
始點
±2.5
終點
±2.5
電關
始點
±2.5
終點
±2.5
可調范圍
30:1
額定行程偏差%
2.5
允許泄量L/H
符合JB/T7387-94 IV級 小于額定容量的10-4


Allowable differential pressure of electronic electric three way regulating valve


公稱通徑mm
25
32
40
50
65
80
100
125
150
200
250
300
允許壓差MPa
3.32
2.20
2.20
1.41
1.38
0.94
0.61
0.51
0.36
0.20
0.19
0.13

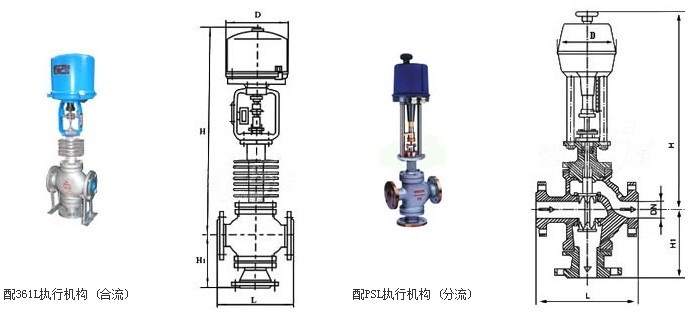

The dimensions of electronic electric three way regulating valve
公稱通徑(mm)
25
32
40
50
65
80
100
125
150
200
250
300
L(mm)
PN1.6MPa
185
200
220
250
275
300
350
410
450
550
640
740
PN4.0MPa
190
210
230
255
285
310
355
425
460
560
660
760
PN6.4MPa
200
210
235
265
295
320
370
440
475
570
670
770
H1(mm)
PN1.6MPa
140
150
160
180
200
220
220
256
278
322
465
580
PN4.0MPa
150
160
170
190
220
232
256
295
313
372
474
585
PN6.4MPa
160
170
180
200
220
242
266
300
318
382
474
585
配PSL
H(mm)
普通型
775
781
775
790
819
820
810
917
927
947
1252
1545
散熱片型
905
911
905
920
766
983
973
1116
1126
1144
1805
1825
D(mm)
176
重量(KG)
61.5
64.5
69.5
76.5
109
132
164
207
267
395
430
480
配361L
H(mm)
普通型
538
544
660
675
744
745
735
972
982
1027
1204
1265
散熱片型
668
674
790
805
691
908
898
1171
1181
1224
1440
1502
D(mm)
225
310
重量(KG)
69
72
85
92
124
147
179
260
320
448
627
780
Note: the bypass valve with a nominal diameter less than 80 is replaced by a confluence valve of the same caliber.
