GI-A high vacuum butterfly valve

GI-A high vacuum butterfly valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

GI-A series of high vacuum butterfly valves are used to connect or cut off the air flow in the vacuum pipeline. The valve plate adopts clamping structure, clamping the sealing ring of the valve plate, playing a better sealing role. Valve opening and closing has locking function.

GI-A series high vacuum butterfly valves are suitable for working air and non corrosive gases.

Main technical performance

適用范圍(Pa)
105~1.3x10-5
閥門漏率(Pa.L/S)
<1.3x10-6
介質溫度(℃)
-25~+80(密封材料為腈橡膠)
-30~+150(密封材料為氟橡膠)
法蘭標準
GB/T6070
安裝位置
任意

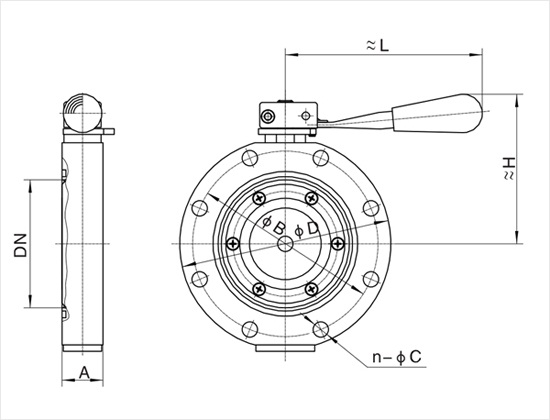

Main shape connection dimensions
型號
通徑(DN)
ΦD
ΦB
H
A
L
n-ΦC
GI-50A
50
110
90
90
26
116
4-Φ9
GI-63A
63
130
110
100
32
132
GI-80A
80
145
125
110
32
154
8-Φ9
GI-100A
100
165
145
120
32
154
GI-125A
125
200
175
140
35
197
8-Φ11
GI-150A
150
225
200
155
35
197
GI-200A
200
285
260
190
45
242
12-Φ11
GI-250A
250
335
310
225
50
330
GI-300A
300
425
395
245
55
330
12-Φ14
Note: GI-63 flange connection is GB/T6070 standard.
