LPD unidirectional /LPS bidirectional opening and closing ash discharge valve

LPD unidirectional /LPS bidirectional opening and closing ash discharge valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

LPD one-way opening and closing ash discharging valve and LPS two-way opening and closing ash discharging valve are widely used in the ash discharging system of metallurgy, building materials, chemical industry, power plant, light industry and other industries. They can intercept the flow of ash, ash and granular materials in the pipeline.

This valve has two kinds of open and close discharging valves: one-way open and close discharging valves LPS can be installed arbitrarily; two-way open and close discharging valves LPS is generally installed in vertical pipes, two-way to open and close fast, are equipped with quick connectors, can be connected to compressed air to remove dust in the valve.

Main technical parameters

Nominal pressure: 0.2MPa

Applicable temperature: less than 120 degrees centigrade

Applicable medium: ash, ash, granular materials, etc.

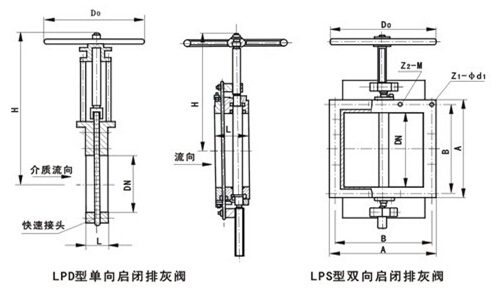

Main shape connection dimensions


DN
A
B
LPD單向
LPS雙向
LPD單向
LPS雙向
Z1-Φd1
Z2-M
Z1-Φd1
Z2-M
L
H
D0
質(zhì)量
Kg
L
H
D0
質(zhì)量
Kg
150×150
250
210
10-Φ14
2-M12
8-Φ14
4-M12
60
480
360
46
120
335
200
62
200×200
300
260
10-Φ14
2-M12
8-Φ14
4-M12
60
550
360
54
120
355
200
74
250×250
350
310
10-Φ14
2-M12
8-Φ14
4-M12
70
690
400
76
125
448
240
89
300×300
400
360
10-Φ14
2-M12
8-Φ14
4-M12
70
780
400
101
125
495
240
117
350×350
470
420
10-Φ14
2-M12
16-Φ14
4-M12
80
880
400
127
125
545
280
135
400×400
520
480
16-Φ14
4-M12
16-Φ14
4-M12
80
995
500
154
135
595
360
160
450×450
570
530
16-Φ14
4-M12
16-Φ14
4-M12
90
1095
500
198
135
645
360
206
500×500
620
580
16-Φ14
4-M12
16-Φ14
4-M12
90
1200
500
251
135
695
360
262


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.LPD unidirectional /LPS bidirectional opening and closing ash discharge valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
