F943X electric fan glasses valve

F943X electric fan glasses valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

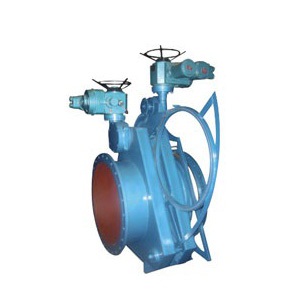

Electric fan-shaped glasses valve, also known as electric fan-shaped blind valve, mainly consists of left valve body, right valve body, sector gate, stainless steel bellows, electric drive device, electric clamping device and other parts. The valve body adopts three point locking fan gate structure. The sealing part adopts stainless steel and rubber sealing ring, which has good sealing performance and long service life. The sealing ring is arranged on the gate plate and is convenient for replacing the sealing ring when maintaining. Electric operation, smooth operation, flexible start and reliable action. The clamping mechanism is clamped by screw nut and has good self locking ability. The electric fan glasses valve is equipped with stainless steel bellows, which has the characteristics of strong flexibility and long service life.

Main performance parameters


公稱壓力MPa
0.25
0.15
0.10
0.05
密封試驗壓力MPa
0.275
0.165
0.11
0.055
強度試驗壓力MPa
0.375
0.225
0.15
0.075
驅動源
壓縮空氣0.4-0.6MPa 油壓壓力6.3MPa 3相380V50HZ
適用溫度℃
丁腈橡膠
硅橡膠
氟橡膠
-20-100
-20-250
-20-300
適用介質
煤氣、其他可燃氣體
啟閉時間S
≤60
主要零部件材料
閥體、閘板為碳鋼;閥桿為不銹鋼;密封圈為硅橡膠


Main shape connection dimensions


DN
D
D1
b
n-φd
L
300
440
395
22
12-φ22
580
350
490
445
24
12-φ22
580
400
540
495
24
16-φ22
680
450
595
550
24
16-φ22
680
500
645
600
24
16-φ22
680
600
755
705
26
20-φ26
680
700
860
810
26
24-φ26
680
800
975
920
26
24-φ30
680
900
1075
1020
26
24-φ30
710
1000
1175
1120
26
28-φ30
710
1100
1275
1220
26
28-φ30
710
1200
1375
1320
26
32-φ30
730
1300
1475
1420
26
32-φ30
830
1400
1575
1520
26
36-φ30
830
1500
1675
1620
26
36-φ30
830
1600
1790
1730
26
40-φ30
830


Installation instructions

After the electric fan-shaped blind valve is installed, the valve base should be fixed by the bracket, and the valve is forced on the bracket when it moves. First start the electric clamping device to move the left and right valve body, the valve body and the gate completely separated, open or close the gate electric device, then start the electric clamping device, check whether the left and right valve body is close to the valve body and whether the limit switch of the electric device is working.

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.F943X electric fan glasses valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
