F743X liquid operated sector glasses valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
Hydraulic fan-shaped glasses valve, also known as hydraulic fan-shaped blind valve, mainly consists of left valve body, right valve body, screw, gate, sealing ring, lever, hydraulic cylinder and other parts, and is composed of a rigid structure by the base, support column. The valve is equipped with clamping, loosening cylinder and turning plate cylinder. The clamping and loosening cylinder drives the left and right valve bodies through lever and screw to complete the loosening and clamping action, and the turning plate cylinder drives the gate to complete the switch action. Rubber sealing ring nippers on the brake plate, with high temperature resistance, good sealing performance, easy replacement, long service life and other characteristics. Hydraulic blind valve can be controlled by a single remote control, also can be multi-network remote control, abnormal circumstances can also use the valve itself to operate manually.
Main performance parameters
公稱壓力MPa | 0.25 | 0.15 | 0.10 | 0.05 |
密封試驗壓力MPa | 0.275 | 0.165 | 0.11 | 0.055 |
強度試驗壓力MPa | 0.40 | 0.225 | 0.15 | 0.075 |
驅動源 | 壓縮空氣0.4-0.6MPa 油壓壓力6.3MPa 3相380V50HZ | |||
適用溫度℃ | 丁腈橡膠 | 硅橡膠 | 氟橡膠 | |
-20-100 | -20-200 | -20-300 | ||
適用介質 | 煤氣等有毒、有害、易燃氣體 | |||
啟閉時間S | ≤60 | |||
主要零部件材料 | 閥體、閘板為碳鋼；絲桿為合金鋼；螺母為錳銅合金、球墨鑄鐵；伸縮器為不銹鋼 | |||

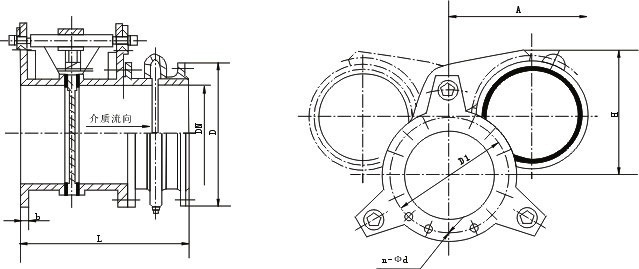

DN | D | D1 | b | n-φd | L |
300 | 440 | 395 | 22 | 12-φ22 | 450 |
350 | 490 | 445 | 22 | 12-φ22 | 450 |
400 | 540 | 495 | 22 | 16-φ22 | 450 |
450 | 595 | 550 | 24 | 16-φ22 | 500 |
500 | 645 | 600 | 24 | 16-φ22 | 500 |
600 | 755 | 705 | 24 | 20-φ26 | 600 |
700 | 860 | 810 | 26 | 24-φ26 | 600 |
800 | 975 | 920 | 26 | 24-φ30 | 800 |
900 | 1075 | 1020 | 28 | 24-φ30 | 800 |
1000 | 1175 | 1120 | 30 | 28-φ30 | 800 |
